  • Product Name: High COP energy saving Flooded type water cooled chiller
  • Product Number: HLWF-Series



High COP Energy Saving Flooded type water chiller





product function

Injection Industry

Golden chiller can accurately control the temperature of mold which can improve the quality and production rate.



Electronic Component Industry

Golden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time.



Machinery Industry

Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.



Electroplating Industry

The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency.



Food & Drink Processing Industry

The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.





 product advantage1. The machine uses Copeland, or Danfoss, Mitsubishi compressor imported from Europe, American ;

can guarantee reliable running, high efficiency, low noise, power saving and long using life;

2. Microcomputer intelligent temperature controller, high precision digital display, t

he water temperature control accuracy can reach ±1°C. Temperature range is 3-50°C, can set at any temperature within this range;

3. Open type stainless steel thick incubator with built in automatic water adding and automatic temperature control;

4. Water chilling unit condenser is shell and tube type ,uses inner grooved copper tube, reasonable design

assures high heat exchange efficiency;

5. Electrostatic plastic sprayed outer shell, Europeanized design, elegant outlook;

the outer panel is of easy dismantlement, to guarantee convenient usage and maintenance.

6.Refrigerant:R22/R407c/R410a/R134, client can choose the refrigerant/gas.







Produce details

Model     HLWF~ 300SR 340SR 400SR 460SR 530SR 590SR 610SR 690SR 850SR 1000SR

Rated Cooling Capacity
×1000Kcal/h 255.0 290.7 346.3 392.6 455.2 504.9 526.3 591.8 733.4 859.2
KW 297 338 403 457 529 587 612 688 853 999
USRT 84.3 96.1 114.5 129.8 150.5 167.0 174.0 195.7 242.5 284.1
  lnput power KW 53.0 59.4 70.5 78.2 90.2 99.9 104.2 116.1 145.4 168.8
  Comp. Current (A) 93.8 105.1 124.8 138.4 159.5 176.8 184.5 205.5 257.3 298.7
  Refrigerant  R134a
   Power Supply  3φ-380V-50HZ
  Safety Protection

Phase reversion protection, Phase lack protection,

Overload current protection,
Discharge air temp.  protection, Low & High pressure protection,

Low temp.  protection, Water flow protection.

  Number of Refrigeration Circuit 1
  Capacity Control (%) 0, 50, 75, 100
   Refrigerant Charge (kg) 68 75 81 98 119 136 149 162 183 225
  Condenser Shell and Tube Type
  Water Side Max Pressure (MPa) 1
  Dia. of Pipe to Condenser (inch) 5" 5" 6" 6" 6" 6" 6" 6" 8" 8"
  Cooling Water Flow  (m3/h) 60.1 68.4 81.4 92.0 106.6 118.2 123.2 138.3 171.7 200.9
  Condenser Water Pressure drop (kPa)  50 52 52 54 56 50 55 58 60 75
  Evaporator Flooded Type
  Water Side Max Pressure (MPa)
  Dia.of Pipe to Evaporator (inch) 4" 4" 5" 5" 5" 5" 6" 6" 8" 8"
   Chilled Water Flow (m3/h) 51.0 58.1 69.3 78.5 91.0 101.0 105.3 118.4 146.7 171.8
  Evaporator Water Pressure drop (kPa) 65 68 65 68 70 70 70 75 78 82
  Running Noise dB(A) 83.1 84.2 86.3 86.9 87.1 87.3 87.6 88.4 90.3 90.8
Total weight (kg) 2700 2880 3600 4100 4410 4730 5360 5670 6170 7250
Running Weight(kg) 2930 3150 3960 4370 4910 5180 5590 6190 7070 8060

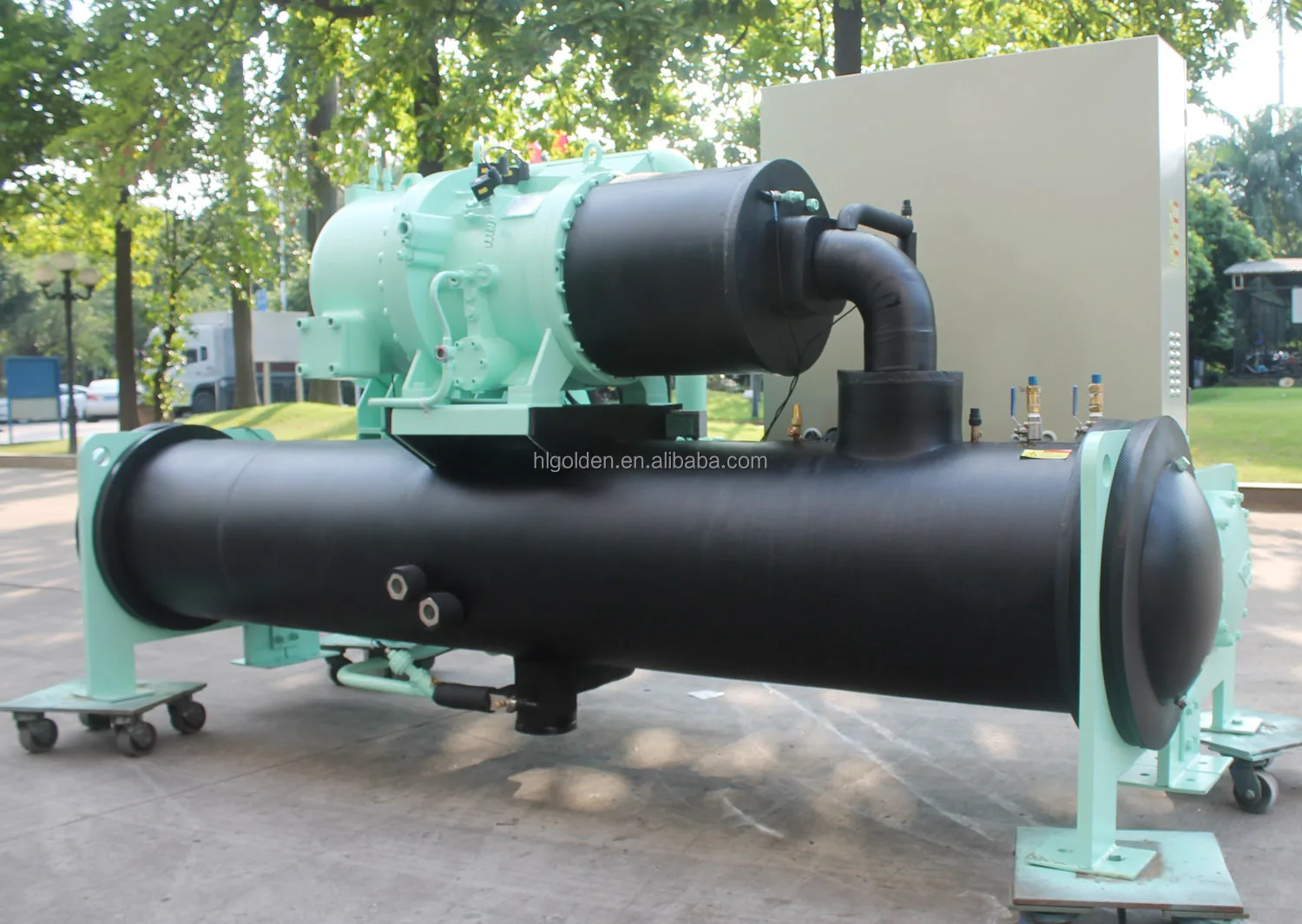

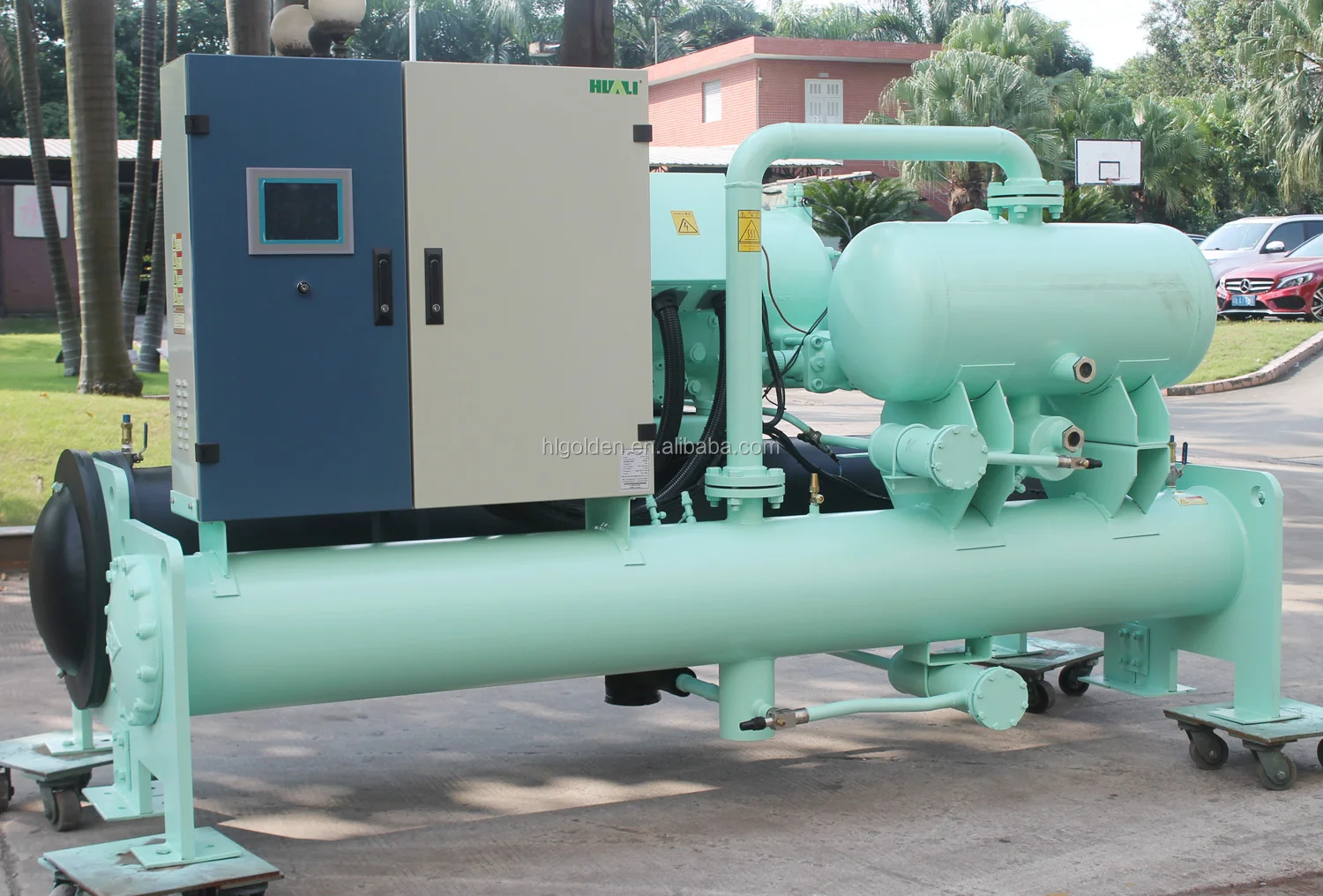

product show











Certification authority.jpg.jpg

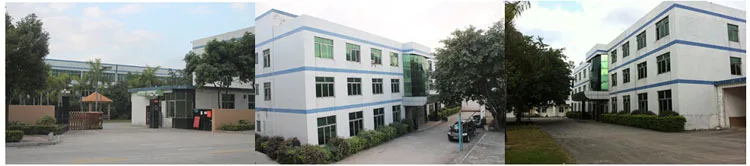

factory strength.jpg

Dongguan Golden Refrigeration Equipment Co., Ltd. is a modern large enterprise, which integrates technology, industry and trade. we are a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. Golden takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
