  • Product Name: 15HP Industrial air cooled water chiller
  • Product Number: HLLA-15SI



15HP Industrial Air Water Cooling Chiller





product function



Industrial cooling:

Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving,

vacuum coating, ultrasonic cleaning etc industries.Chiller that uses high effective a easy cleaning stainless

steel heat exchanger, exerts its unique advantage against erosion and filth in electroplating, PCB, oxidization,

chemical Industry,etc weak acid and alkaline conditions.



Commercial cooling:

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops,

large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks,

exhibition halls, stadiums, museums, convention centers, ticket agencies,

HR market, lottery centers; Real Estate Property: Apartments, villas, offices,

commercial buildings,

 model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,

Internet bars, beauty shops, golf course

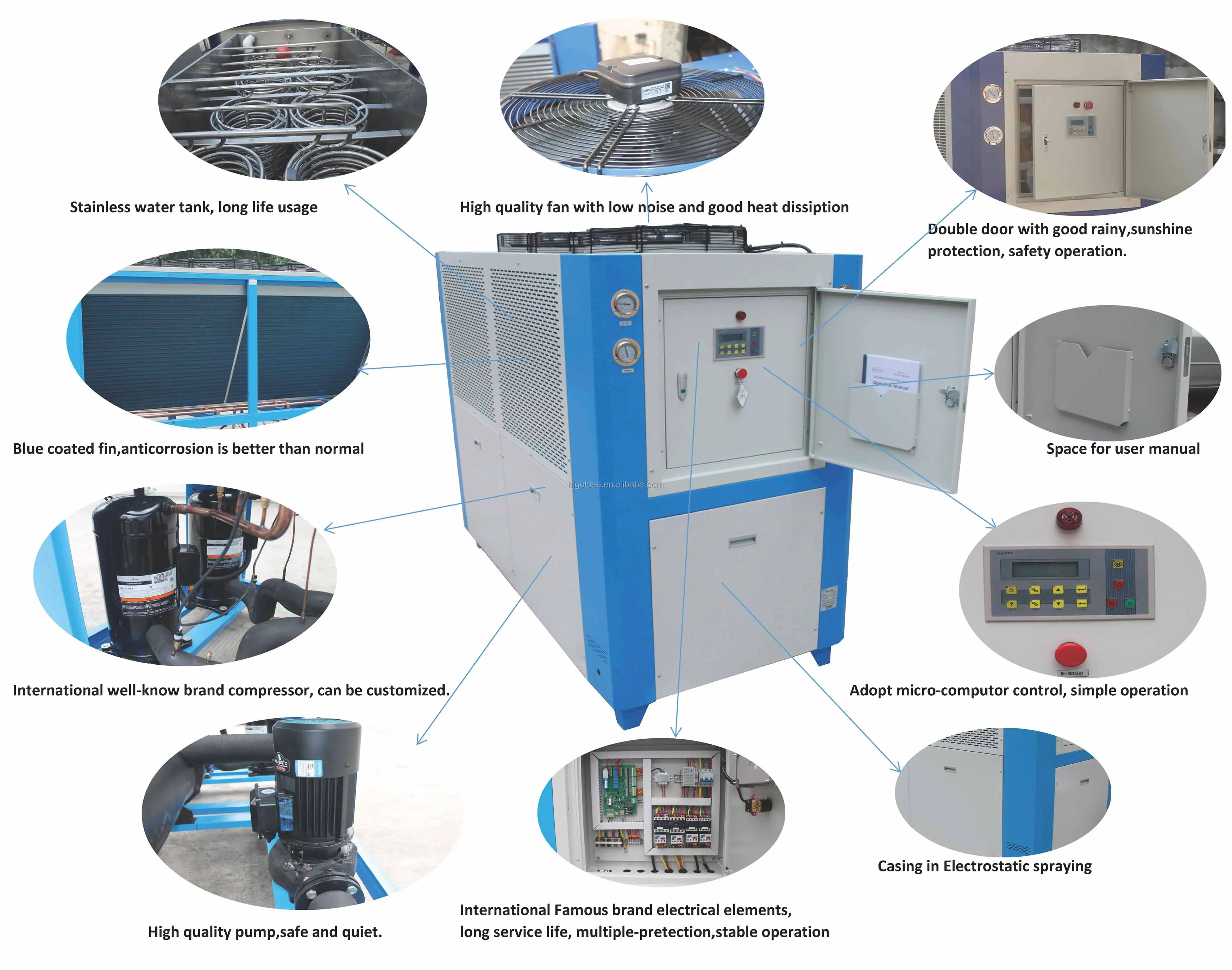

product advantage

Air cooled package chiller, the standard unit adapt Copeland or Danfoss

compressor. With high effiency and energy saving character.



1. Cooling capacity: 47.4kw



2. Voltage: 120/220/380V-3PH-50HZ.



3. Refrigerant: R22, R407.R134, R410 optional.



4. Chilled water temperature: Air conditioner use 12/7 deg, industrial use 17/12 deg.

Also as per customer’s demand to adjust.



5. Shell and tube type evaporator and Aluminium fins type condenser.





Produce details

  Model  HLLA ~ 03SI 05SI 08SI 10SI 12.5SI 15SI 20DI 25DI 30DI 40TI 45TI
Rated Cooling Capacity ×1000 kcal/h 7.9 12.8 20.8 27.9 32.3 40.8 55.7 64.7 81.5 97.0 122.3
KW 9.2 14.9 24.2 32.4 37.6 47.4 64.8 75.2 94.8 112.8 142.2
Input Power (KW) 3.85 5.55 8.15 10.4 12.0 16.0 20.1 22.5 31.2 33.7 45.7
Comp. Input Power×Qty.  (KW) 2.6 4.3 6.35 8.1 9.3 12.5 8.1×2 9.3×2 12.5×2 9.3×3 12.5×3
 Chilled Water Pump Power  (KW) 0.75 0.75 1.1 1.1 1.5 1.5 1.5 1.5 2.2 2.2 2.2
 Comp. Current (A) 6.8 10.5 14 17.5 20 25.6 33.8 37.2 49.8 55.8 72.6
Power Supply 3φ-380V-50HZ
 Safety Protection

Phase reversion protection, Phase lack protection,

Overload current protection,
Discharge air temp.  protection, Low & High pressure protection,

Low temp.  protection, Water flow protection.

 Number of Refrigeration Circuit 1 2 3
 Capacity Control (%) 0, 100 0, 50, 100 0, 33, 66, 100
 Refrigerant R22
 Condenser Ripple Aluminum Fins around Cooper Pipe
 Power lnput of Fan (KW) 0.5 0.5 0.7 1.2 1.2 2.0 2.4 2.4 4.0 3.6 6.0
 Evaporator Pipe Coil Type
 Water Side Max Pressure (MPa) - 1
 Dia.of Pipe to Evaporator (inch) 1" 1-1/2" 2" 2-1/2"
 Chilled Water Flow (L/m) 26.4 42.7 69.4 92.9 107.8 135.9 172.0 194.8 272.2 292.2 408.3
 Evaporator Water Pressure drop (kPa) - 17 23 28 30 28 28 32 32 31
 Running Noise dB(A) 72 72 73 75 75 75 75 75 75 75 75
 Tank Volume (L) 50 70 120 200 200 270 350 350 420 510 510
 Total weight (Kg) 130 170 430 480 510 560 840 880 980 1130 1280

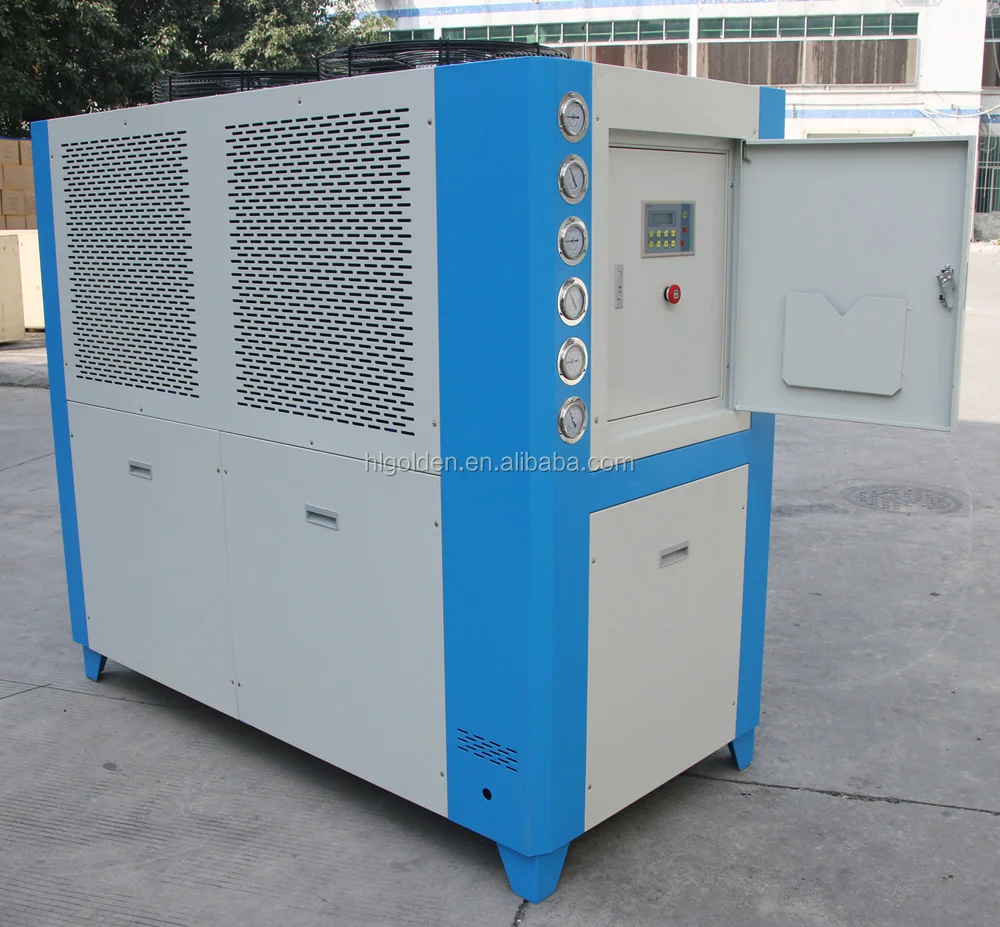

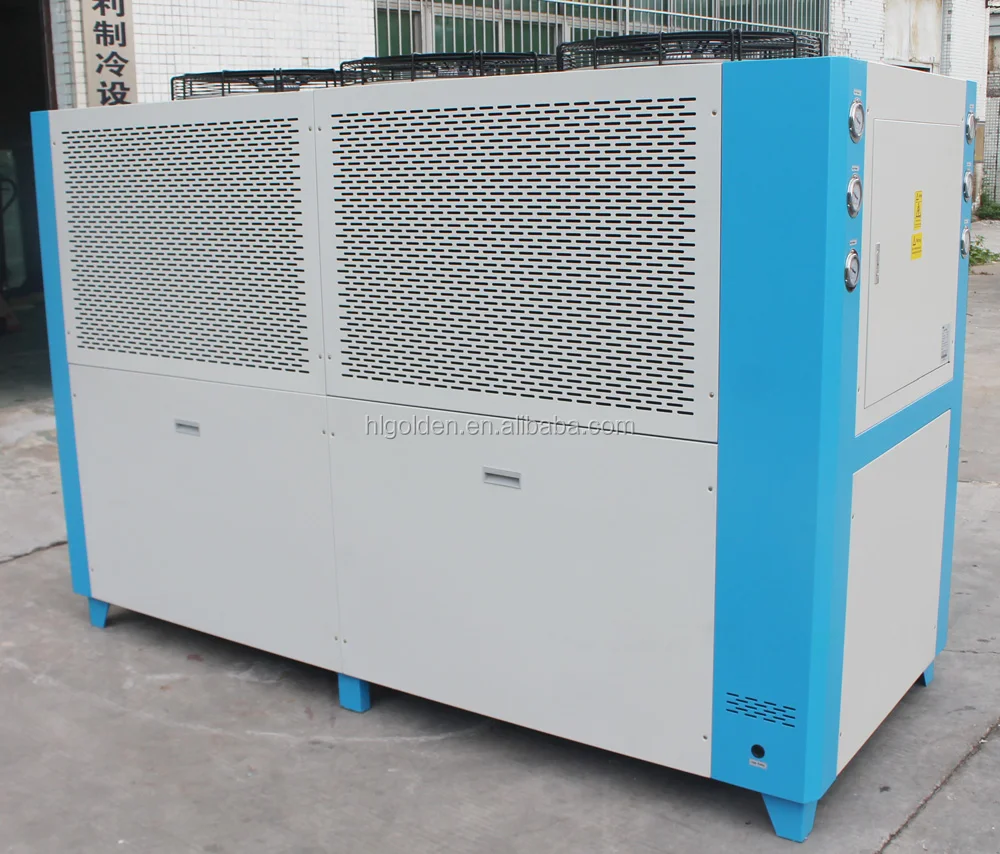

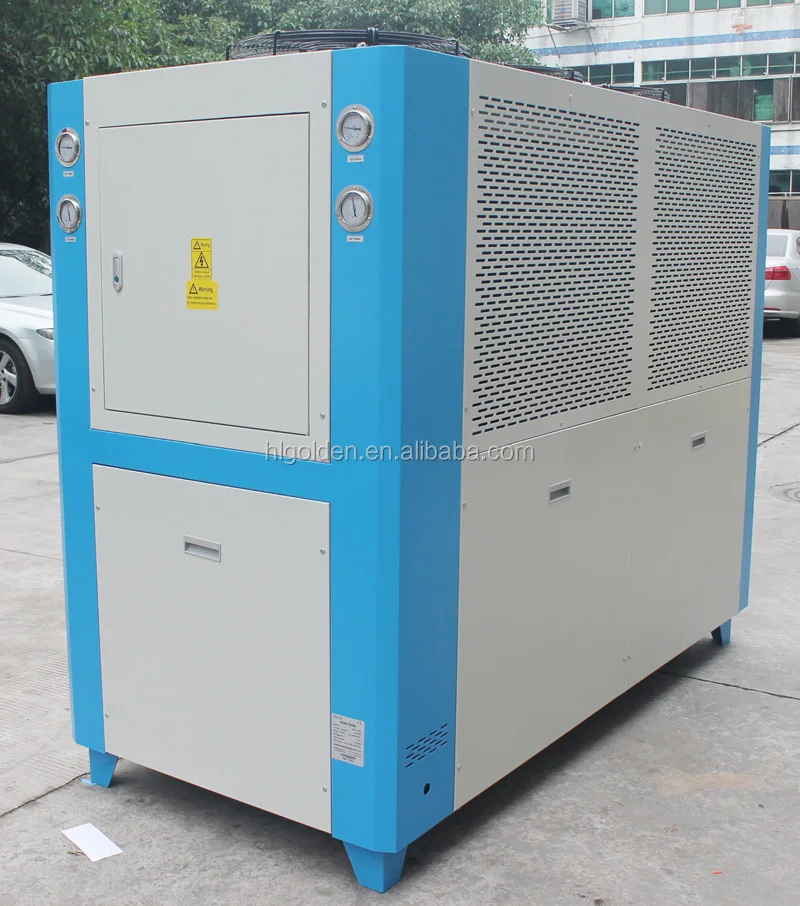

 product show

 .jpg

20HP-IMG_6839

1-15HP

5-30HP





 Certification authority.jpg.jpg





factory strength.jpg



Dongguan Golden Refrigeration Equipment Co., Ltd. is a modern large enterprise, which integrates technology, industry and trade. we are a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. Golden takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
