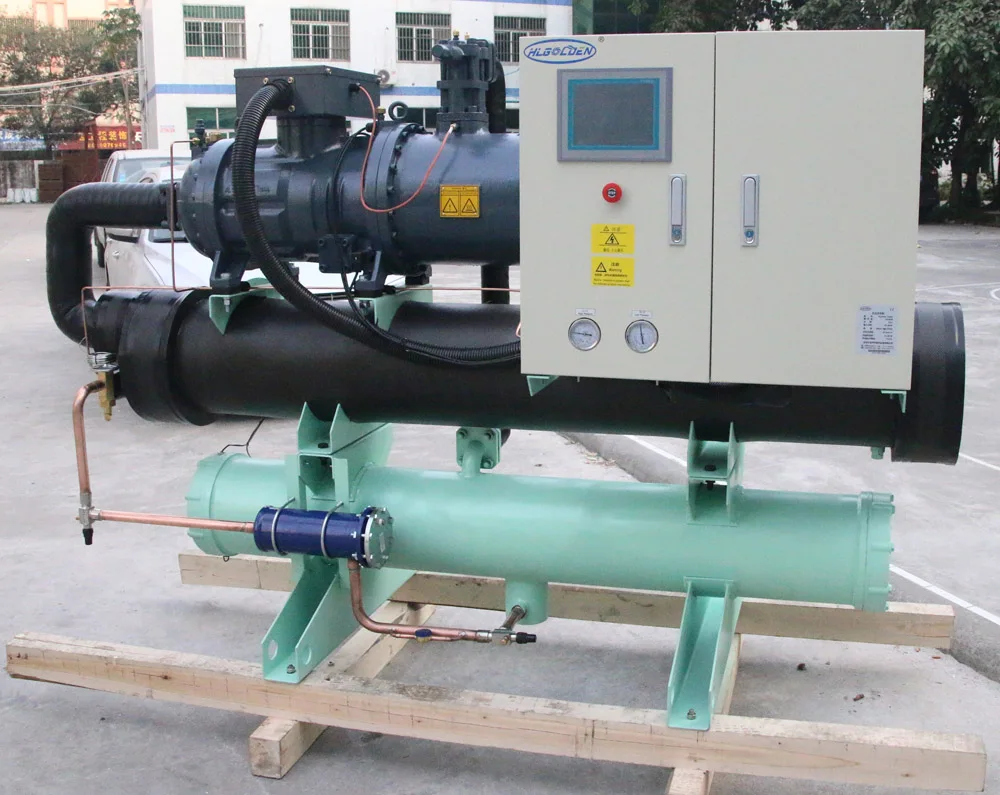

Screw compressor water cooled chiller for HVAC system
Injection Industry
HIGolden chiller can accurately control the temperature of mold which can improve the quality and production rate.
Electronic Component Industry
HIGolden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time.
Machinery Industry
HIGolden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.
Electroplating Industry
The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency.
Food & Drink Processing Industry
The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.
Air conditioner system
Widely used in building air conditioning system, small and medium-sized office, workshop, restaurants, villas and other air conditioning environment.
|
Model HLWW~ |
090S |
125S |
165S |
220S |
240S |
280S |
325S |
350S |
390S |
460S |
Rated Cooling Capacity |
×1000Kcal/h |
78.9 |
107.6 |
141.2 |
187.4 |
205.7 |
242.3 |
280.2 |
303.4 |
333.9 |
397.4 |
|
KW |
92 |
125 |
164 |
218 |
239 |
282 |
326 |
353 |
388 |
462 |
|
USRT |
26.1 |
35.6 |
46.7 |
62.0 |
68.0 |
80.1 |
92.7 |
100.3 |
110.4 |
131.4 |
|
lnput power |
KW |
22.1 |
29.2 |
36.6 |
48.8 |
53.2 |
59.9 |
69.4 |
75.6 |
84.1 |
97.7 |
|
Comp. Current (A) |
39.2 |
51.6 |
64.7 |
86.4 |
94.1 |
105.9 |
122.7 |
133.8 |
148.8 |
172.8 |
|
Refrigerant |
R22 |
|
Power Supply |
3φ-380V-50HZ |
|
Safety Protection |
Phase reversion protection, Phase lack protection,
Overload current protection, Discharge air temp. protection,
Low & High pressure protection, Low temp. protection,
Water flow protection.
|
|
Number of Refrigeration Circuit |
1 |
|
Capacity Control (%) |
0, 66, 100 |
0, 50, 75, 100 |
|
Refrigerant Charge (kg) |
17 |
24 |
30 |
40 |
44 |
52 |
59 |
65 |
71 |
86 |
|
Condenser |
Shell and Tube Type |
|
Water Side Max Pressure (MPa) |
1 |
|
Dia. of Pipe to Condenser (inch) |
2" |
2-1/2" |
3" |
3" |
3" |
3" |
4" |
4" |
4" |
5" |
|
Cooling Water Flow (m3/h) |
19.6 |
26.5 |
34.5 |
45.9 |
50.3 |
58.8 |
68.0 |
73.7 |
81.2 |
96.3 |
|
Condenser Water Pressure drop (kPa) |
41 |
47 |
45 |
53 |
52 |
52 |
50 |
50 |
50 |
51 |
|
Evaporator |
Shell and Tube Type |
|
Water Side Max Pressure (MPa) |
1 |
|
Dia.of Pipe to Evaporator (inch) |
2" |
2-1/2" |
3" |
3" |
3" |
3" |
4" |
4" |
4" |
4" |
|
Chilled Water Flow (m3/h) |
15.8 |
21.5 |
28.2 |
37.5 |
41.1 |
48.5 |
56.0 |
60.7 |
66.8 |
79.5 |
|
Evaporator Water Pressure drop (kPa) |
22 |
28 |
32 |
35 |
45 |
55 |
61 |
66 |
63 |
43 |
|
Running Noise dB(A) |
73.1 |
73.7 |
74.8 |
79 |
79.2 |
79.6 |
80.4 |
81.5 |
83.1 |
84.2 |
|
Total weight (kg) |
880 |
910 |
1080 |
1220 |
1390 |
1510 |
1620 |
1730 |
1830 |
2140 |
|
Running Weight(kg) |
970 |
1010 |
1220 |
1380 |
1530 |
1670 |
1780 |
1870 |
2020 |
2390 |
