  • Product Name: Evi Low Temperature Air Source Heat Pump
  • Product Number: HLC


EVI EVI Low Temperature Air Source Heat Pump



Product Applications

1.Adopt ultralow temperature compressor,environmental friendly refrigerant R404A.
Under low temperature condition,unit heating EER is 50%-80% higher than common unit.
Heacting capacity reduce little when ambient temperature drop sharply, so can maintain a good heating effect.
2.Ultralow temperature air source heat pump are commonly used in Europe,
this pump have cooling,heating ,provide hot(sanitary) water functions.
Like Germany Siemens heat pump, Dimplex heat pump,Sweden IVT pup.
3.Hot (sanitary)water is priority when cooling ,heating,or standby model.
4.Adopt world famous fittings,unit is small, compact, can hang on a wall or placed in the balcony.
5.Unit have remote wire controller,user can control in the room.



Product Parameter



Model   HLRB~ 04Y 05Y 08Y 10Y 15Y 20Y 25Y
Cooling Capacity (KW) Ambient air temp 35 ºC 10.8 13.5 20 26 35.3 53.7 67
  Ambient air temp 7ºC 11.9 15.3 22.5 29.6 38.8 60 71
Heating Capacity (KW) Ambient air temp -7ºC 8.8 11 16 21.3 25.4 43.8 49
  Ambient air temp -15ºC 7 9.1 13.5 17.8 21 36 42
Comp. Input Power (KW) 3.7 4.7 6.5 9 11.8 18.6 23.7
Reclaimed  Water Flow (L/h) 350 420 620 810 1100 1700 2200
Power Supply  220V/ 1ph/ 50HZ, 380V/ 3ph/ 50Hz 380V/ 3ph/ 50Hz
Refrigerant  R404A
Number of Refrigeration Circuit 1 2 4
Water pump Power (KW) 0.37 0.37 0.75 0.75 1.1 - -
Lift (M) 20 18 18 18 2.4 - -
Flow (L/S) 0.48 0.6 1 1.26 1.63 2.52 3.15
Evaporator High Efficient Crimped Coaxial Casing
Condenser Ripple Aluminum Fins Around Copper Pipe
Air Direction Side  Top
Ambient Air Temp. Range  ºC minus 20ºC~50ºC
Pipe Size (inch) 1" 1.25" 2.5"
Weight(KG) 130 180 240 280 360 630 780
Dimension L*W*H (mm) 1050*410*960 1050*430*1080 1420*725*1365 1484*730*1060 1420*725*1325 1380*1380*1660 2010*980*1850

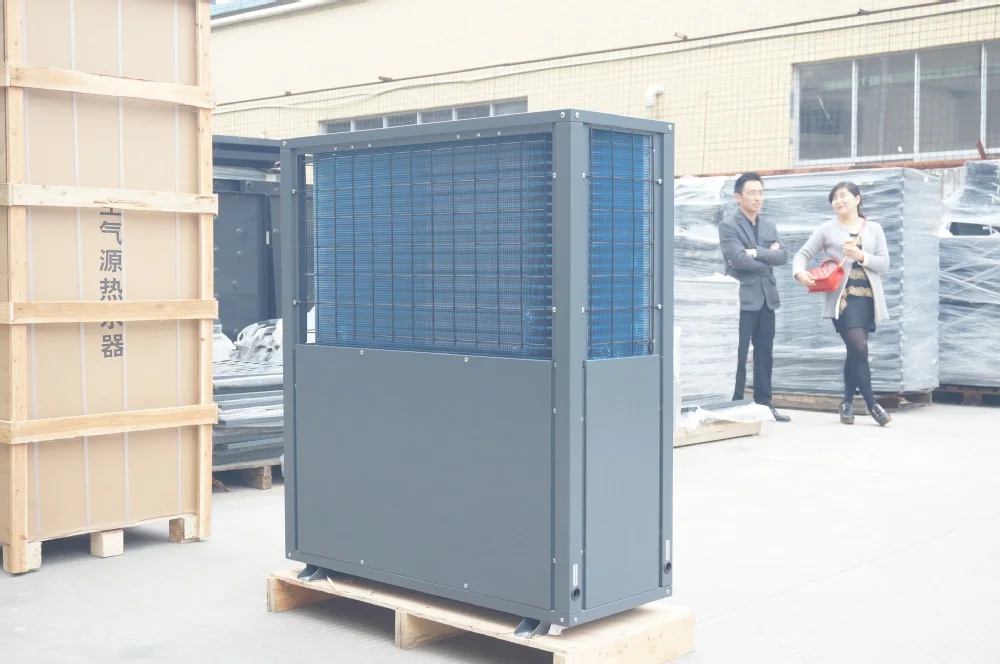

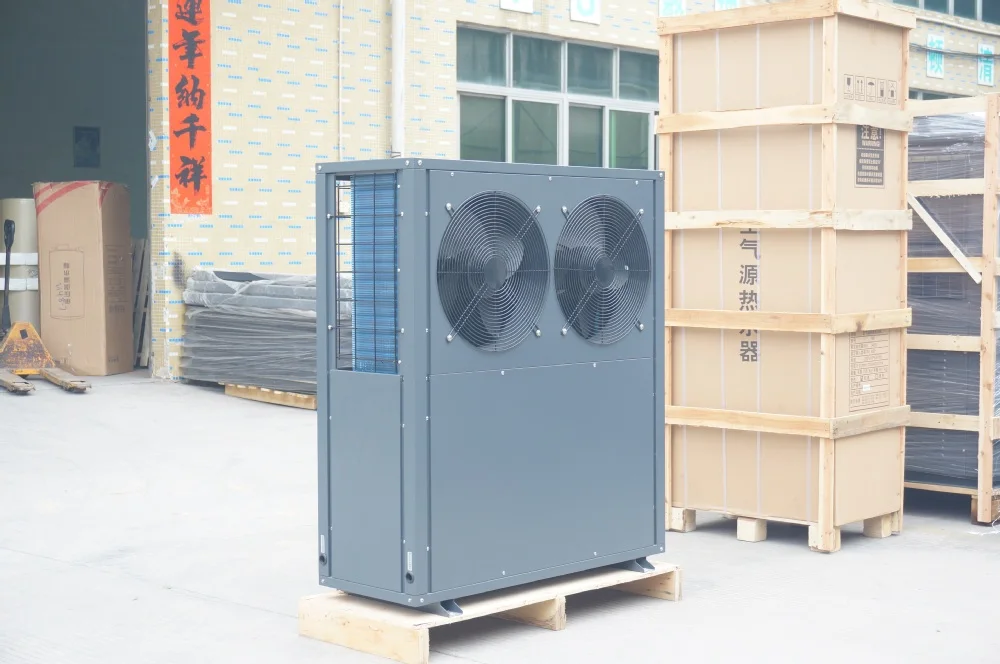

Product Show





Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.




FAQ

Q: What information do you need to provide in order to get a quotation?
A: Generally, for industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.
1) Air cooled or water cooled?
2) Cooling Capacity / Heating Capacity.
3) Power Supply.
4) Refrigerant.
5) Chilled water outlet temperature / Hot water temperature
6) Order Quantity etc.


Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
