  • Product Name: Refrigeration Equipment Condensing Unit
  • Product Number: A04


Refrigeration equipment condensing unit


1. Product description

With Bitzer ECOLINE series semi-hermetic compressor.
With copper tube-Alu. Fin air cooled condenser or high efficient shell-tube water cooled condenser.
Air cooled condensing units with low noise and high efficient external rotor fan motor.
With high quality China made or imported components.
System with water-proof cable connection box for easy connection.
A complete product range with wide temp. range available, can be used for keeping fresh, cold storage, ice making and cold water etc."    .



2. Product Assembly unit
(1) Middle and high temperature HLAB~02MY to HLAB~02MY

Pressure controller
Liquid accumulator
Crankcase heater
Solenoid valve
Condenser
Bitzer Semi-hermetic screw compressor
High/low pressure gauge
Junction box Filter



3. Product Parameter



Model      HLAB~ 02MY 02MY 02MY 02MY 03MY 03MY 04MY 05MY 06MY
Comp model 2GES-2Y 2FES-2Y 2EES-2Y 2DES-2Y 2CES-3Y 4FES-3Y 4EES-4Y 4DES-5Y 4CES-6Y
   Temperature ( ºC)  5ºC ~ -10 ºC
Power supply 380V/ 3Ph/ 50HZ
Condenser Fan Qty 1 1 2 2 2 2 2 2 2
Voltage (V) 380 380 380 380 380 380 380 380 380
Input (W) 180×1 180×1 140×2 140×2 180×2 180×2 180×2 250×2 250×2
Cap. &
 Input
 Te-5ºC Cap (W) 4060 5010 6490 7770 9590 10400 13220 15800 19150
Input (KW) 1.94 2.41 2.79 3.41 4.16 4.49 5.76 6.8 8.13
Te-10ºC Cap (W) 3240 4000 5180 6220 7700 8310 10560 12610 15250
Input (KW) 1.81 2.25 2.56 3.13 3.84 4.17 5.34 6.3 7.51
Te-15ºC Cap (W) 2550 3140 4070 4900 6100 6550 8330 9940 11980
Input (KW) 1.66 2.06 2.31 2.84 3.5 3.82 4.87 5.75 6.82
Pipe Gas In (mm) φ16 φ16 φ22 φ22 φ22 φ22 φ28 φ28 φ28
Liquid dia. (mm) φ10 φ10 φ12 φ12 φ12 φ12 φ12 φ16 φ16
Overall Size A (mm) 620 620 960 960 1060 1300 1300 1300 1280
B (mm) 650 650 680 680 680 750 750 750 710
C (mm) 560 560 460 510 720 670 770 870 910
Installation size    580×350 580×350 920×380 920×380 1020×380 1260×410 1260×410 1260×410 1000×665



4. Product Pictures

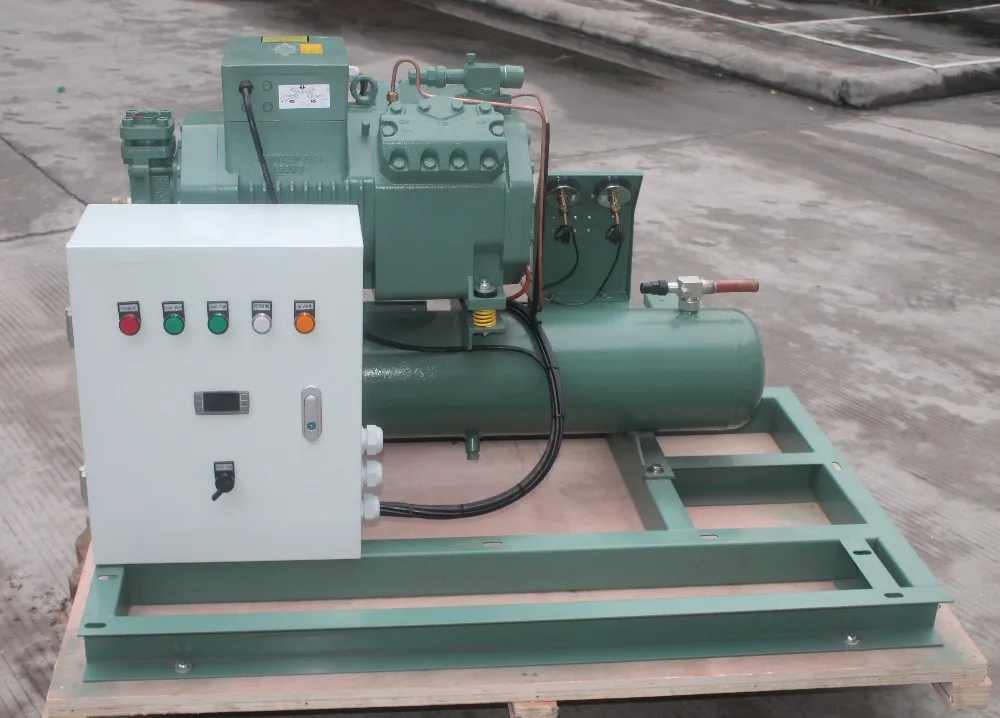

IMG_7104

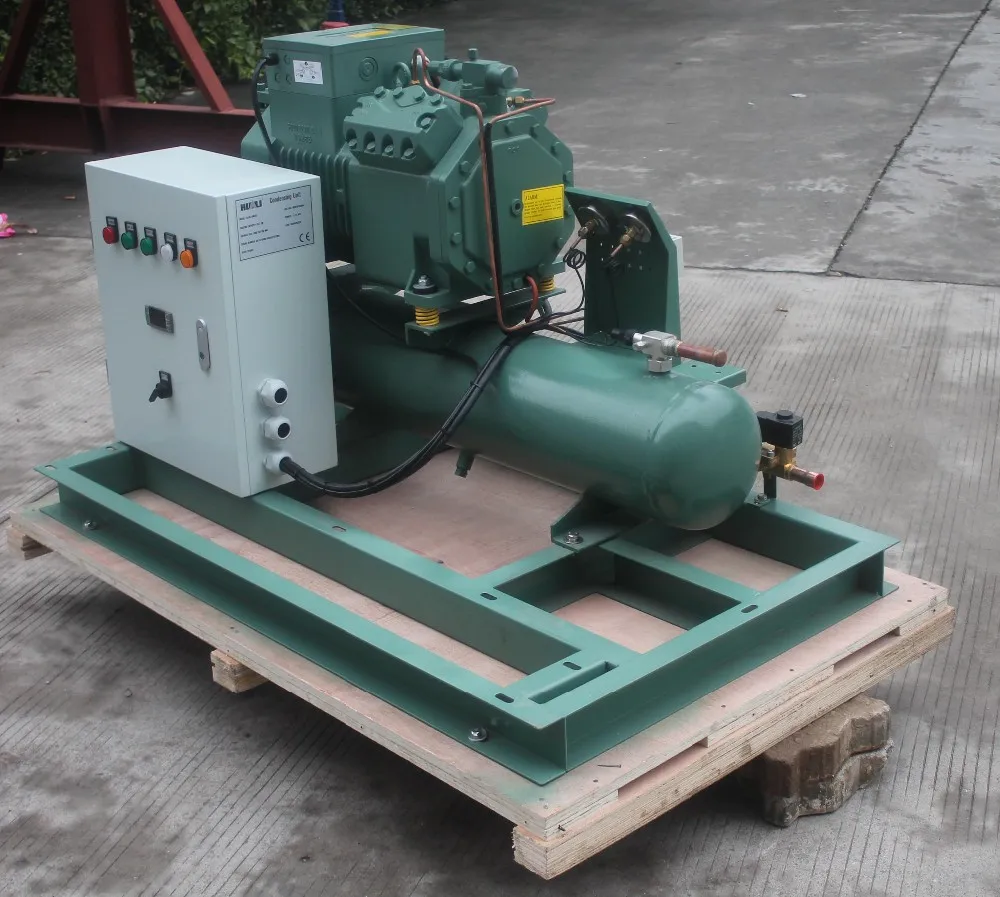

IMG_7093


5. FAQ

Q: What information do you need to provide in order to get a quotation?

A: Generally, for condensing unit we need to know the Cooling Capacity, required evaporated temperature(cold room temnperature), compressor brands etc in order to suggest the suitable models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?

A: Yes, you can. We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.

Q: What is the warranty of products?

A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
