  • Product Name: Ducted type water ceiling/ horizontal concealed fan coil unit without air return box
  • Product Number: HLC~34HC-238HC


Air Conditioner Terminal Horizontal Duct ceiling concealed Fan Coil Unit

Product Description

Lightweight, compact, solid, and with ultra-thin design
Three-row pipes with hyperbolic shutter type aluminum fin heat exchanger, strengthens the air by impeller fan of large input air, so that the unit maximizes heat transfer efficiently
Particularly, the unit adopts large impeller slow-speed of revolution fan and low noise motor
With high, medium, and low wind speed in third gear, water system adopts room temperature control devices to adjust flexibly
When nobody is in the room, the fan stop automatically, economic and energy-saving
Each model has four kinds of overboard static pressures which are 0PA, 80PA, 60PA, and 80PA (optional)
Unit can achieve the overboard static pressure by only updating the motor connector plug
Controlled easily by subarea in accordance with the application and room design air-conditioning system into several zone system.




Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU




Product Parameter



                                                     Horizontal Concealed Fan Coil Unit
  ModelHLC~ 34HC 51HC 68HC 85HC 102HC 136HC 170HC 204HC 238HC
Air flow  High speed 340 510 680 850 1020 1360 1700 2040 2380
(m 3 /h)  Medium speed 255 383 510 638 765 1020 1275 1530 1785
   Low speed 170 255 340 425 510 680 850 1020 1190
Cooling capacity  High W 2247 3146 4146 5056 5955 7758 9657 11601 13965
BTU 7669 10737 14150 17256 20324 26478 32959 39594 47663
 Medium W 1620 2440 3290 4120 4850 6550 8190 9730 11580
BTU 5529 8328 11229 14062 16553 22355 27952 33208 39523
 Low W 1310 2010 2650 3320 3900 5300 6610 7860 9350
BTU 4471 6860 9044 11331 13311 18089 22560 26826 31912
Heating capacity  High W 3251 4697 6189 7747 9491 11997 14732 18162 22137
BTU 11096 16031 21123 26441 32393 40946 50280 61987 75554
 Medium W 2350 3520 4530 6040 6850 9260 11740 14140 16360
BTU 8021 12014 15461 20615 23379 31604 40069 48260 55837
 Low W 1620 2470 3130 4170 4740 6500 8180 9710 11290
BTU 5529 8430 10683 14232 16178 22185 27918 33140 38533
Surplus pressure  Normal  0 or 12
of outlet (Pa)  High static pressure  30 or 50
 Cooling water temperature 7-12°C
Hot water temperature 40-60°C
 Power supply AC220V/50Hz
Heat Exchanger  Type  2.2mm copper pipes covered into aluminum fins, fin pitch 2.2mm
Water supply kg/h 324 482 655 814 936 1278 1602 1915 2178
 Water resistance kPa 30 30 30 30 40 40 40 40 50
 Working pressure 1.6MPa
Low static pressure FCU Input power w 37 52 62 76 96 134 152 189 228
Motor power w 10 16 20 25 30 20×2 25×2 30×2 40×2
High static   Input power w 44 59 72 87 108 156 174 212 253
pressure FCU Static pressrue
  30Pa Motor power w 12 20 25 30 40 25×2 30×2 40×2 50×2
  Static pressure Input power w 49 66 84 100 118 174 210 250 300
  50Pa Motor power w 16 25 30 40 50 30×2 40×2 50×2 60×2
 Fan motor quantity 1 2 2 2 2 3 4 4 4
   Low static pressure ≤37 ≤39 ≤41 ≤43 ≤45 ≤46 ≤48 ≤50 ≤52
Noise  High static pressure 30Pa ≤40 ≤42 ≤44 ≤46 ≤47 ≤48 ≤50 ≤52 ≤54
dB(A)  High static pressure 50Pa ≤42 ≤44 ≤46 ≤47 ≤49 ≤50 ≤52 ≤54 ≤56
 Pipe   Inlet/outlet water pipe 3/4 "internal thread
Condensation water pipe 3/4"  external thread
  L mm 780 880 980 1080 1180 1480 1680 1780 1880
Dimension W mm 500 500 500 500 500 500 500 500 500
  H mm 260 260 260 260 260 260 260 260 260
20GP container loading quantity 325 290 260 236 216 172 152 143 135
 40GP container loading quantity 666 591 531 482 441 351 309 292 277
 Main materials
 Aluminium thickness:0.014mm,  Copper tube thickless:0.35mm,  Galvanized sheet: 1mm,  Packing:  Carton

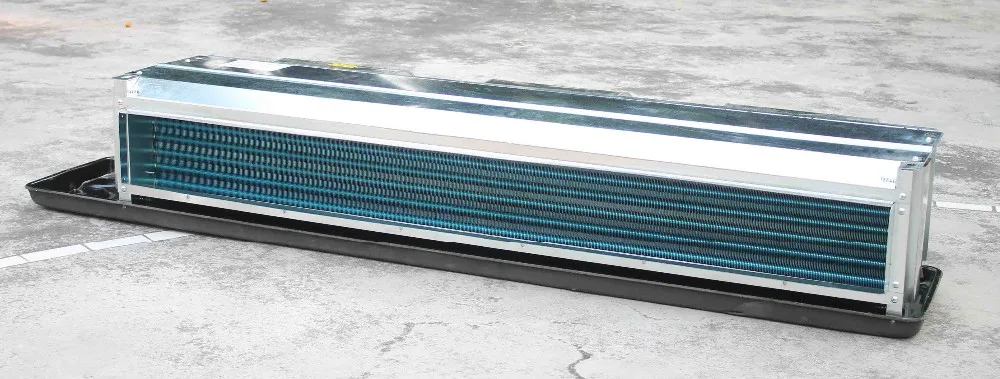

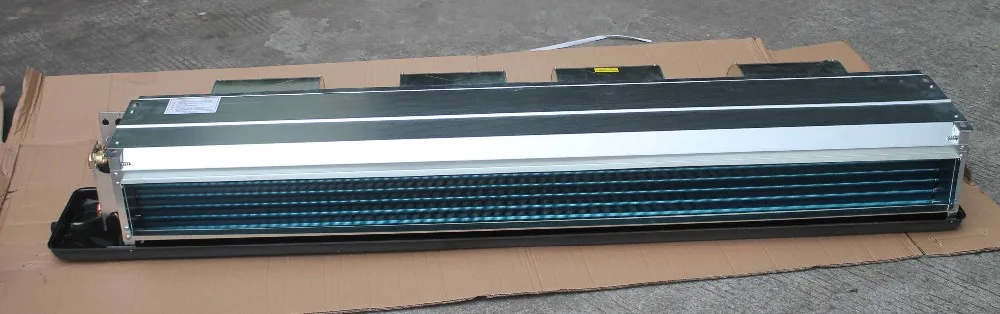

Product Show

IMG_4418


IMG_4430

IMG_4430

IMG_4455
CE

Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.





FAQ


Q: What information do you need to provide in order to get a quotation?
A: Generally, for fan coil unit we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.

For horizontal fan coil unit, besides the information mentioned above, pls also tell us:
1) With air return box and air filter? ( YES or NO )
2) Air return from BACK side or DOWN side?
3) With LCD thermostat? ( YES or NO )
4) With two-way or three-way valve? ( YES or NO )
5) Water pipe connection LEFT connection or RIGHT connection?
6) Standard horizontal concealed fan coilo unit is 3 rows coils with one inlet & one outlet.

We could also make it 4 rows coils with two inlets & two outlets.

7) If you required electric heating, pls tell us how many heating capacity you need.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
