  • Product Name: Higolden High Quality Ceiling,Floor Type Air Conditioner
  • Product Number: HLC~51~238F




Ceiling Floor Mounted Type Chilled Water Fan Coil Unit




Product Application

It is a unitary central air conditioning that can be installed by handing on the ceiling and fixing on the floor, indoor unit is designed with elegant and generous appearance, whether installed in any space indoor,indoor unit can achieve a perfect match with the decoration and give full play to lofty taste, floor-ceiling type is a model that requires unfold install,air supply jet is wide and long , ocupying small effective space, cooling effect is uniform than household wall mounted type and floor standing type air conditioner, and it is especially suitable for the family, villas,open-style office buildings, small shopping malls and supermarket, bank hall, entertainment venues and other places that have been decorated.



Product Details

1) Silence design with low noise
2) Air flow direction can be changed to have uniform cooling
3) No need for air duct
4) Special design of the air filter, the filter can be dismantled without special tools
5) Easy for cleaning and maintenance
6) Driving device and remote control device can be provided for the outlet plates
7 )Lifting pump and coils can be provided for collecting condensed water
8) Electric source: 230V, 1-phase and 50Hz -60HZ




Product Features

Thin fuselage,elegant and beautiful appearance
Discharging water at right and left side,easy installation.
Light wave sterilizing bactericidal,initiation of the industry.
Dual-purpose of floor-mounted and ceiling suspended,for your choice at will
Built-in electric-heating equipment,strong effects of heating.
Ceiling floor Fan Coil unit, it can be either install under the ceiling or put on the floor.
With high efficiency aluminum fin type heat exchnager.
Suitable for long and narrow room air conditioning
Its casing is made of ABS plastic.
Applicable to shopping malls, hotels, theatres, and house where there is a water chiller or heat pump to be connected.




Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU



Product Parameter



Model    HLF~ 34VU 51VU 68VU 85VU 102VU 136VU 170VU 204VU 238VU
Power supply  220V,50Hz,1Ph
Air volume High  m3/h 340 510 680 850 1020 1360 1700 2040 2380
Medium  260 390 510 640 770 1020 1280 1530 1790
Low  170 260 340 430 510 680 850 1020 1190
Cooling capacity TH High  W 1800 2700 3600 4500 5400 7200 9000 10800 12600
BTU/h 6142 9212 12283 15354 18425 24566 30708 36850 42991
SH W 1368 2052 2736 3420 4103 5471 6839 8207 9575
BTU/h 4668 7001 9335 11669 13999 18667 23335 28002 32670
TH Medium W 1494 2242 2989 3736 4483 5978 7472 8967 10461
SH W 1181 1771 2362 2952 3541 4722 5903 7084 8265
TH Low W 1162 1744 2325 2906 3487 4649 5812 6974 8136
SH W 953 1430 1907 2383 2860 3813 4765 5718 6672
Heating capacity High  W 2700 4050 5400 6750 8100 10800 13500 16200 18900
Medium W 2131 3197 4262 5328 6393 8524 10655 12786 14917
Low W 1675 2511 3349 4186 5024 6697 8372 10046 11721
Noise High  0Pa dB(A) 37 39 41 43 45 46 48 50 51
Power input High  0Pa W 37 52 62 76 96 134 152 189 228
Water flow m3/h 0.31 0.46 0.62 0.77 0.93 1.23 1.54 1.85 2.16
Water pressure dropping kPa 7 15 18 23 28 30 22 30 36
Dimension of water
(in & out)connection pipe
in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
Coil type High efficient copper pipe to wear aluminum coil
Maximum working pressure Mpa 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Condensation pipe size(diameter) mm ∅21

Dimension (L*W*H) mm 858*250*608 908*250*608 1058*250*608 1208*250*608 1258*250*608 1608*250*608 1758*250*608 1908*250*608 2058*250*608
Net Weight(With casing) Kg 20 23 25.5 28 28.5 40.5 43 47 51
Gross Weight(with casing) Kg 22.5 25.5 28 30.5 31 43 46 50 54

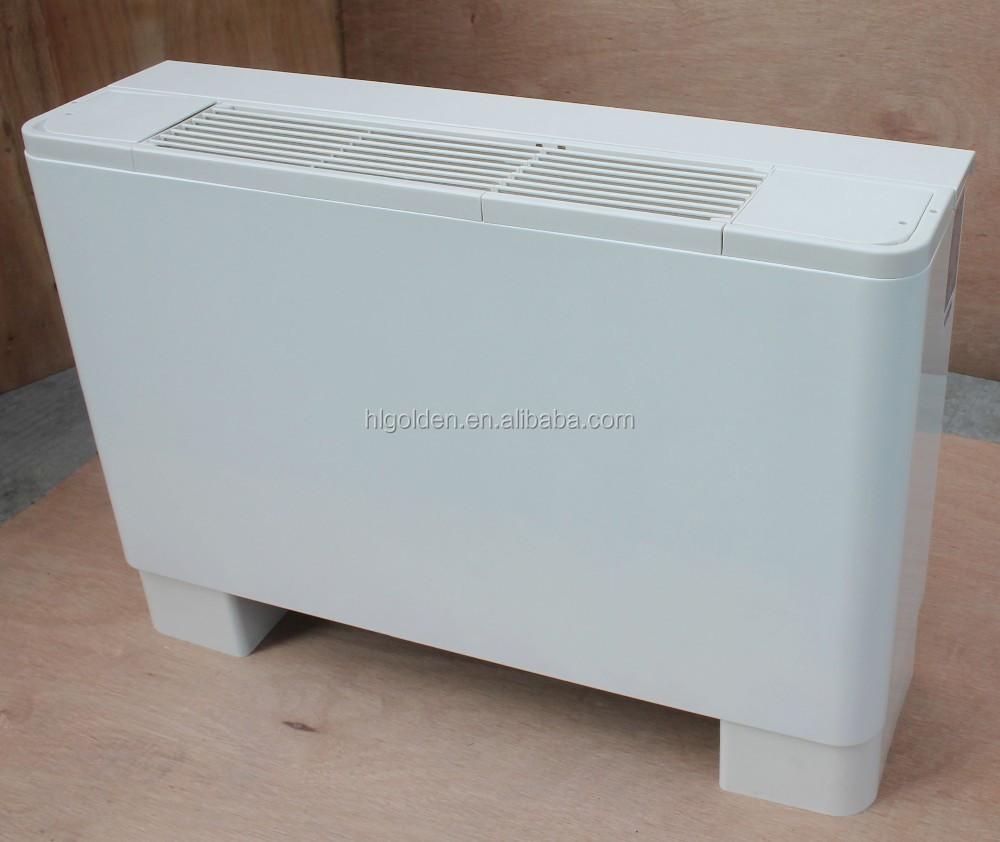

Product Show
3-


4-


Product Certificate
CE


Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.




Why choose US?

1. Safe and long life.
2. High efficiency.
3. Great wind capacity,low noise
4. Tuyere materials made of aluminum alloy and ABS plastic panel.




FAQ



Q: What information do you need to provide in order to get a quotation?
A: Generally, for fan coil unit we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
