  • Product Name: Higolden Horizontal Expose Fan Coil Unit
  • Product Number: HE




Ceiling Mounted Chilled Water Horizontal Fan Coil Unit



Product Details

1)Low noise.
2)Easy installation.
3)Special design of air filter.
4)Air flows: 340 to 2, 380m3/h.
5)Cooling capacity range:1.8to 13.965kW.
6)Power supply: 220V, 50HP, and 1pH depends on the different country.
7)Used for:Industry,hotel,commercial bulding,etc.
8)Function:cooling only,cooling and heating.
9)Test condition for rated refrigerating output of fan coil unit.
10)Temperature of dry ball: 27 degree Temperature of wet ball: 19.5 degree Temperature of inlet water: 7 degree Temperature difference between inlet water and outlet water: 5degrree.
11)Test condition for rated heating output of fan coil unit: Temperature of dry ball: 21 degree Temperature of inlet water: 60 degree.
Rated water volume is same as in test condition of rated refrigerating output Items marked with refers to single-shaft motor.




Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU




Product Parameter

Model HLC~ 34HE 51HE 68HE 85HE 102HE 136HE 170HE 204HE 238HE
Air flow
 (m3/h)
High speed 340 510 680 850 1020 1360 1700 2040 2380
Medium speed 255 383 510 638 765 1020 1275 1530 1785
Low speed 170 255 340 425 510 680 850 1020 1190
Cooling capacity High W 1800 2700 3600 4500 5400 7200 9000 10800 12600
BTU 6143 9215 12287 15359 18430 24574 30717 36860 43004
Medium W 1620 2440 3290 4120 4850 6550 8190 9730 11580
BTU 5529 8328 11229 14062 16553 22355 27952 33208 39523
Low W 1310 2010 2650 3320 3900 5300 6610 7860 9350
BTU 4471 6860 9044 11331 13311 18089 22560 26826 31912
Heating capacity High W 2700 4050 5400 6750 8100 10800 13500 16200 18900
BTU 9215 13823 18430 23038 27645 36860 46076 55291 64506
Medium W 2350 3520 4530 6040 6850 9260 11740 14140 16360
BTU 8021 12014 15461 20615 23379 31604 40069 48260 55837
Low W 1620 2470 3130 4170 4740 6500 8180 9710 11290
BTU 5529 8430 10683 14232 16178 22185 27918 33140 38533
Cooling water temperature 7-12ºC
Hot water temperature 40-60ºC
Power supply AC220V/50Hz
Heat Exchanger Type copper pipes covered into aluminum fins, fin pitch 2.2mm
Water supply kg/h 324 482 655 814 936 1278 1602 1915 2178
Water resistance kPa 30 30 30 30 40 40 40 40 50
Working pressure 1.6MPa
Low static pressure FCU Input power w 37 52 62 76 96 134 152 189 228
Motor power w 10 16 20 25 30 20×2 25×2 30×2 40×2
High static
pressure FCU
Static pressrue
30Pa
Input power w 44 59 72 87 108 156 174 212 253
Motor power w 12 20 25 30 40 25×2 30×2 40×2 50×2
Static pressure
50Pa
Input power w 49 66 84 100 118 174 210 250 300
Motor power w 16 25 30 40 50 30×2 40×2 50×2 60×2
Fan motor quantity 1 2 2 2 2 3 4 4 4
Noise
dB(A)
Low static pressure ≤37 ≤39 ≤41 ≤43 ≤45 ≤46 ≤48 ≤50 ≤52
High static pressure 30Pa ≤40 ≤42 ≤44 ≤46 ≤47 ≤48 ≤50 ≤52 ≤54
High static pressure 50Pa ≤42 ≤44 ≤46 ≤47 ≤49 ≤50 ≤52 ≤54 ≤56
Pipe  Inlet/outlet water pipe 3/4 "internal thread
Condensation water pipe 3/4" external thread
Dimension L mm 900 900 1110 1150 1290 1520 1740 1950 2140
W mm 520 520 520 520 520 520 520 520 520
H mm 285 285 285 285 285 285 285 285 285
20GP container loading quantity 247  247  201  194  173  146  128  114  104
40GP container loading quantity 487  487  395  381  340  289  252  225  205

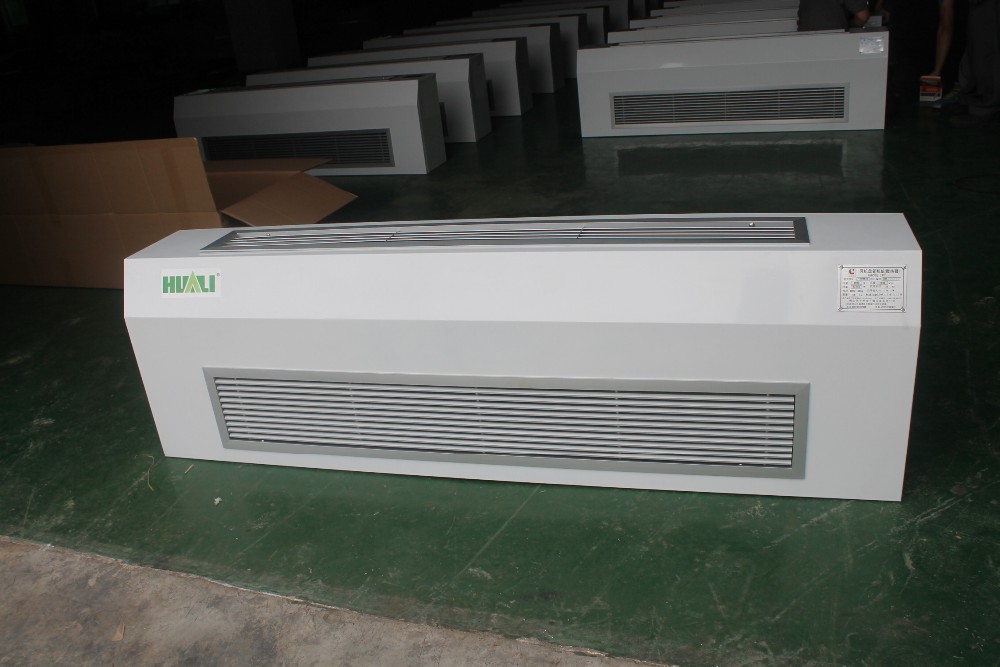

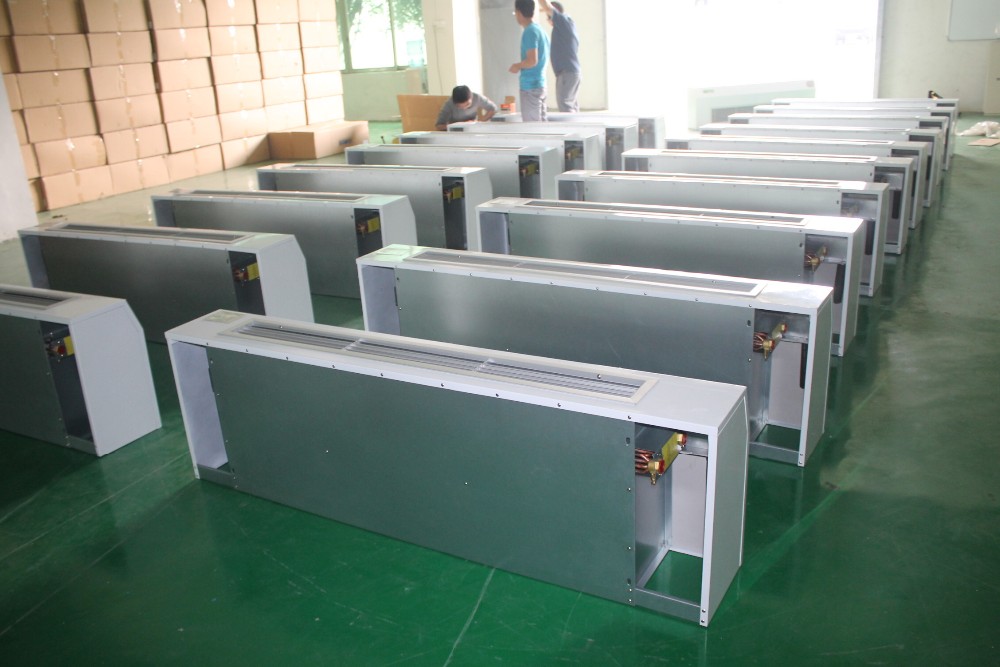

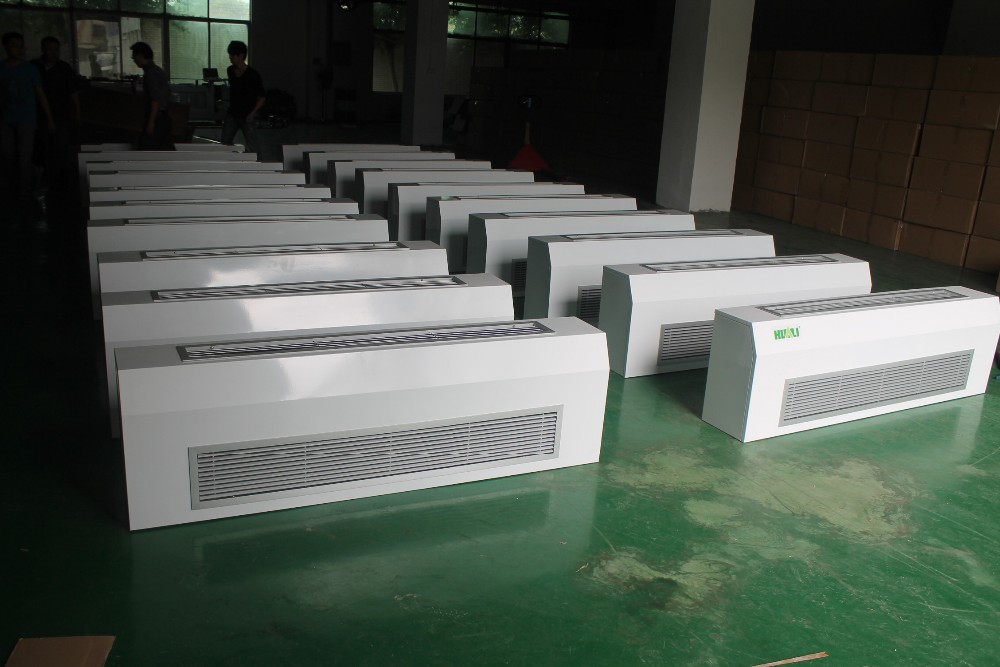

Product Show



IMG_0155


About our certification



Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.




FAQ



Q: What information do you need to provide in order to get a quotation?
A: Generally, for fan coil unit we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
