  • Product Name: Higolden High quality 34 UE Cassette fan coil unit
  • Product Number: HLC~UE


Air Conditioning Cassette Fan Coil Unit



Product Details

1) Silence design with low noise
2) Air flow direction can be changed to have uniform cooling
3) No need for air duct
4) Special design of the air filter, the filter can be dismantled without special tools
5) Easy for cleaning and maintenance
6) Driving device and remote control device can be provided for the outlet plates
7 )Lifting pump and coils can be provided for collecting condensed water
8) Electric source: 230V, 1-phase and 50Hz -60HZ




Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU




Product Parameter

  Model    HLC~ 34U 51U 68U 85U 102U 136U 170U 204U 238U
34UE 51UE 68UE 85UE 102UE 136UE 170UE 204UE 238UE
  Power supply 220V,50Hz,1Ph

Air flow
 (m3/h)
CFM 200 300 400 500 600 800 1000 1200 1400
  High speed 340 510 680 850 1020 1360 1700 2040 2380
  Medium speed 280 380 515 660 765 1040 1280 1550 1800
  Low speed 180 260 340 430 530 710 860 1050 1280
  Static pressure Pa 0 0 0 0 0 0 0 0 0

Cooling capacity
  High W 1800 2700 3600 4500 5400 7200 9000 10800 12600
BTU/h 6142 9212 12283 15354 18425 24566 30708 36850 42991
  Medium W 1500 2460 3000 3715 4423 6435 7848 9296 10500
BTU/h 5118 8394 10236 12676 15091 21956 26777 31718 35826
  Low W 1391 2057 2479 2921 3793 5604 7223 8534 8900
BTU/h 4746 7018 8458 9966 12942 19121 24645 29118 30367

Heating capacity
  High W 2700 4050 5400 6750 8100 10800 13500 16200 18900
BTU/h 9212 13819 18425 23031 27637 36850 46062 55274 64487
  Medium W 1949 2770 3938 4902 5694 7924 10473 12997 13900
BTU/h 6650 9451 13436 16726 19428 27037 35734 44346 47427
  Low W 1297 1774 2779 3505 3876 5421 6992 8645 9700
BTU/h 4425 6053 9482 11959 13225 18496 23857 29497 33096
  Noise   H 0Pa dB(A) 37 39 41 43 45 46 48 50 51
Power input   H 0Pa W 37 52 62 76 96 134 152 189 228
  Waterflow volume m3/h 0.31 0.46 0.62 0.77 0.93 1.23 1.54 1.85 2.16
  Water pressure dropping kPa 11.8 11.8 22.4 27 29.6 29.6 35.4 35.4 40
  Pipe     Inlet/outlet water pipe ZG3/4"
Condensation water pipe ZG3/4"
  Coil   type high efficient copper pipe to wear Hydrophilic aluminum coil
  Drain pipe size mm ¢26
  Dimension   unit L×W×H     mm 590*590*270 752*752*293 822*822*293
  panel 650*650*45 850*850*45 950*950*45
  Weight   unit kg 19 19 20 23 23 25 28 28 29
  Panel 2.2 4.5 6

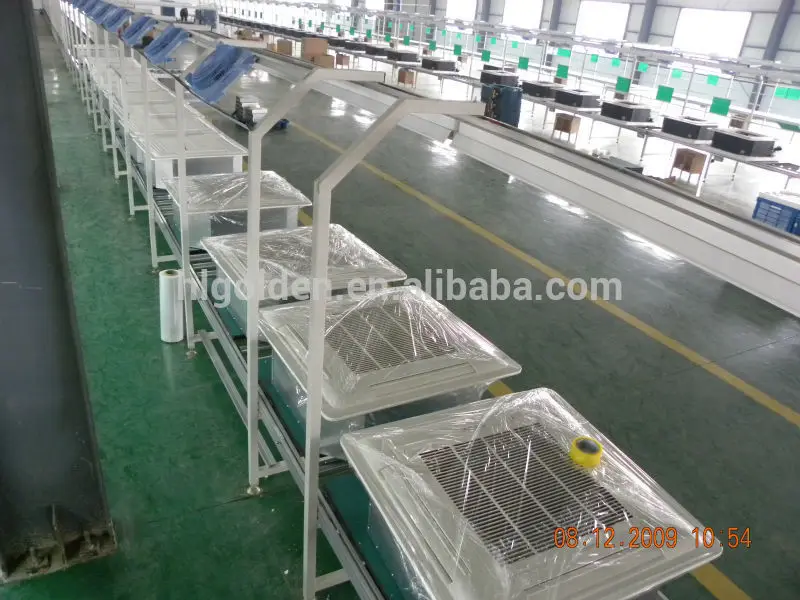

Product Show




Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.



our certification





FAQ



Q: What information do you need to provide in order to get a quotation?
A: Generally, for fan coil unit we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
