  • Product Name: 776kw Ceiling Air Handling Unit
  • Product Number: D01-8


HLC Series HVAC system Chilled Water Ceiling Air Handling Unit AHU




Product Description

Our air handling units have been designed with your needs in mind; they ensure optimum performance of your building's energy, are flexibly designed and easily serviced, come in a range of sizes and most importantly, provide long-term energy efficiency savings for your compan

Excellent Design
1. The centrifugal fan with double inlets is used to keep it running stable and with less noise
2. We adopt nylon-web plate filter, easily removable
3. The condensed water tray is made of stainless steel or galvanization steel, having the features of no welding, non-leakage

Appearance
Our products was in Strong structure, good looking.
The color we painted is not easily faded.

Low noise
The centrifugal fan with double inlets is used to keep it running stable and with less noise

Minimizing the air leakage
We adopt Strip structure to reduce the number of panel seams and cut down the potential exfiltration and infiltration)

You can see our products in Hospital , commercial offices ,restaurants etc.
We are especially professional and strong in the field.our products is popular for its excellent craftsmanship

The filter
We adapt nylon-web materials .it's quite light for you to install and cleaning.it has the features of good toughness,high tensile strength

The drip tray
The condensed water tray is made of stainless steel or galvanization steel, free from rust and erosion, no welding, non-leakage, Insulation layer stable

Flexible framework
We are especially professional and strong in air handling unit .We offer to design the unit size according to a the customer's requirement and we guarantee the Elegant appearance

Minimizing exfiltration
The frame is high air tightness.successfully minimizing the exfiltration so as to avoid the Excess Fan Work and Excess Coil Work.




Product Advantages

1. We offer you the best service includingdesign, installation, after-sale service
2. The modular casing design, easy interchanging each other.improve the insulation and air tightness
3. Beautiful and elegant, easy to install and maintain
4. Reasonable inside structure, with the suitable space for maintenance
5. High air tightness guarantee the cooling and heating capacity
6. Well-sealed panels suitable for the pressurization and depressurization environment



Product Parameter


Ceiling Air Handling Unit (4 Rows)

Model Air Flow  Motor-external linked Air return  Fresh Air Noise Weight
Pressure Power
Input
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
m3/h Pa kW KW KW m3/h kPa DN KW KW m3/h kPa DN dB(A) kg
HLG-2C-4R 2000 150 0.55 12.0  19.3  2.1  3.3  DN32 23.9  21.7  4.11  9.5  DN40 <60 90
HLG-2.5C-4R 2500 150 0.75 13.3  21.4  2.3  3.4  DN32 29.3  26.7  5.05  10.7  DN40 <60 105
HLG-3C-4R 3000 200 0.75 14.6  23.5  2.5  3.5  DN32 34.8  31.6  5.99  11.8  DN40 <60 120
HLG-3.5C-4R 3500 200 0.75 18.1  29.2  3.1  4.1  DN40 41.5  37.8  7.15  13.6  DN40 <60 135
HLG-4C-4R 4000 200 1.1 21.7  34.9  3.7  4.7  DN40 48.2  43.9  8.31  15.3  DN40 <60 150
HLG-5C-4R 5000 200 1.5 27.0  43.5  4.7  6.2  DN40 59.3  54.0  10.22  18.0  DN40 <60 180
HLG-6C-4R 6000 200 1.5 32.5  52.2  5.6  8.5  DN40 71.6  65.2  12.34  18.3  DN50 <60 210
HLG-7C-4R 7000 200 2.2 37.9  61.0  6.5  9.5  DN50 83.9  76.5  14.45  18.5  DN50 <60 240
HLG-8C-4R 8000 200 2.2 43.3  69.7  7.5  10.5  DN50 96.1  87.5  16.56  18.9  DN65 <65 250
HLG-9C-4R 9000 200 2.2 48.8  78.5  8.4  12.5  DN50 108.4  98.6  18.67  19.1  DN65 <65 270
HLG-10C-4R 10000 200 2.2 54.2  87.2  9.3  14.5  DN50 120.6  109.8  20.78  19.3  DN65 <65 290
HLG-12 C-4R 12000 250 3 65.2  105.0  11.2  15.1  DN50 147.0  133.9  25.33  19.8  DN65 <65 330
HLG-15C-4R 15000 250 4 77.6  124.9  13.4  15.8  DN65 175.8  160.0  30.28  21.0  DN65 <65 39



Ceiling Air Handling Unit (6 Rows)

Model Air Flow  Motor-external linked Air return  Fresh Air Noise Weight
Pressure Power
Input
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
m3/h Pa kW KW KW m3/h kPa DN KW KW m3/h kPa DN dB(A) kg
HLG-2C-6R 2000 150 0.55 16.2  26.1  2.79  3.8  DN32 33.1 30.2 5.71  12.3 DN40 <60 99
HLG-2.5C-6R 2500 150 0.75 17.9  28.9  3.09  4.1  DN32 40.7 37.1 7.02  13.8 DN40 <60 116
HLG-3C-6R 3000 200 0.75 19.7  31.7  3.39  4.4  DN32 48.3 44 8.32  15.3 DN40 <60 132
HLG-3.5C-6R 3500 200 0.75 24.4  39.4  4.21  5.2  DN40 57.7 52.5 9.94  17.6 DN40 <60 149
HLG-4C-6R 4000 200 1.1 29.2  47.0  5.03  6.0  DN40 67 61 11.55  19.8 DN40 <60 165
HLG-5C-6R 5000 200 1.5 36.5  58.7  6.28  7.9  DN40 82.4 75 14.20  23.3 DN50 <60 198
HLG-6C-6R 6000 200 1.5 43.8  70.5  7.55  10.8  DN40 99.5 90.5 17.14  23.7 DN50 <60 231
HLG-7C-6R 7000 200 2.2 51.1  82.3  8.81  12.5  DN50 116.6 106.1 20.08  24 DN50 <60 246
HLG-8C-6R 8000 200 2.2 58.5  94.1  10.07  13.4  DN50 133.6 121.6 23.02  24.5 DN65 <65 260
HLG-9C-6R 9000 200 2.2 65.8  105.9  11.34  16.0  DN50 150.6 137.1 25.95  24.8 DN65 <65 280
HLG-10C-6R 10000 200 2.2 73.1  117.7  12.60  18.5  DN50 167.7 152.6 28.88  25 DN65 <65 300
HLG-12C-6R  12000 250 3 88.0  141.7  15.17  19.2  DN65 204.4 186 35.21  25.6 DN65 <65 340
HLG-15C-6R  15000 250 4 104.7  168.6  18.04  20.1  DN65 244.3 222.3 42.09  27.2 DN80 <65 40



Ceiling Air Handling Unit (8 Rows)

Model Air Flow  Motor-external linked Air return  Fresh Air Noise Weight
Pressure Power
Input
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
Cooling
Capacity
Heating
Capacity
Water
Flow
Water
Resistance
Inlet/
outlet
m3/h Pa kW KW KW m3/h kPa DN KW KW m3/h kPa DN dB(A) kg
HLG-2C-8R 2000 150 0.55 20.4  32.8  3.52  4.6  DN32 39.6 36.0  6.82  14.6 DN40 <60 104
HLG-2.5C-8R 2500 150 0.75 22.6  36.4  3.89  5.0  DN32 48.6 44.3  8.38  16.4 DN40 <60 121
HLG-3C-8R 3000 200 0.75 24.8  39.9  4.27  5.4  DN32 57.7 52.5  9.94  18.2 DN40 <60 138
HLG-3.5C-8R 3500 200 0.75 30.8  49.6  5.31  6.4  DN40 68.9 62.7  11.87  20.9 DN40 <60 156
HLG-4C-8R 4000 200 1.1 36.8  59.3  6.34  7.3  DN40 80.1 72.8  13.79  23.6 DN40 <60 173
HLG-5C-8R 5000 200 1.5 45.9  74.0  7.91  9.7  DN40 98.4 89.6  16.96  27.8 DN50 <60 207
HLG-6C-8R 6000 200 1.5 55.2  88.8  9.50  13.2  DN50 118.8 108.1  20.47  28.2 DN50 <60 242
HLG-7C-8R 7000 200 2.2 64.4  103.6  11.09  23.1  DN50 139.2 126.6  23.98  43.4 DN65 <60 264
HLG-8C-8R 8000 200 2.2 73.6  118.5  12.68  16.4  DN50 159.5 145.2  27.49  29.2 DN65 <65 287
HLG-9C-8R 9000 200 2.2 82.9  133.4  14.28  19.5  DN50 179.9 163.7  31.00  29.5 DN65 <65 311
HLG-10C-8R 10000 200 2.2 92.1  148.3  15.87  22.6  DN50 200.3 182.2  34.50  29.8 DN65 <65 334
HLG-12C-8R 12000 250 3 110.9  178.5  19.10  23.6  DN65 244.1 222.1  42.05  30.6 DN65 <65 379
HLG-15C-8R 15000 250 4 131.8  212.2  22.71  24.7  DN65 291.8 265.5  50.27  32.4 DN80 <65 449





Product Show

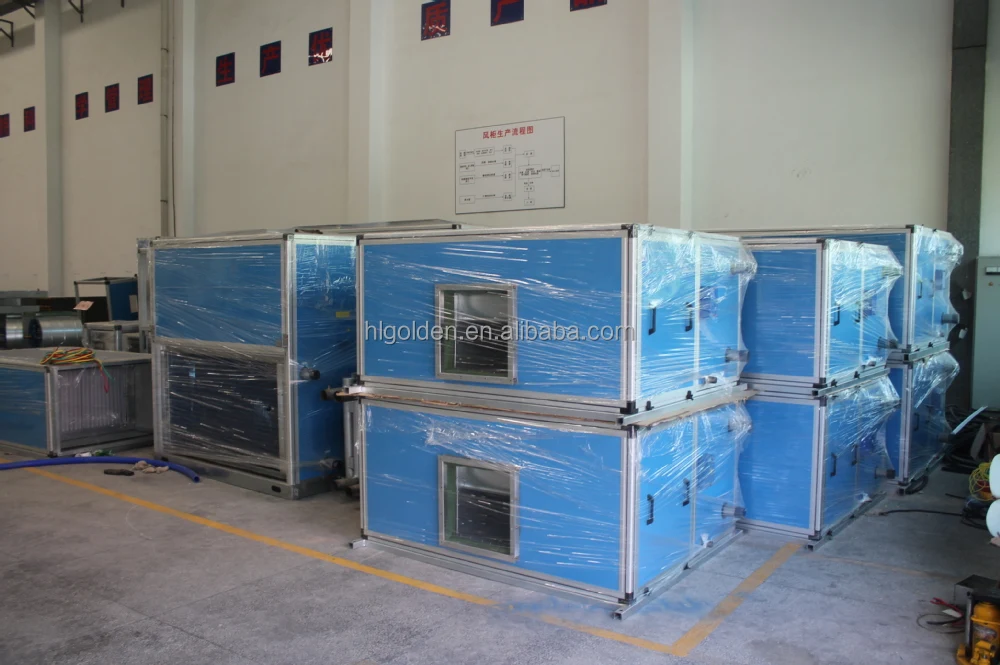

air handing unit.JPG


Production line of air handing unit.JPG


Delivery & Payment

1. Packing: Standard Plywood Package.
2. Delivery Day: 25 days after deposit is confirmed.
3. Delivery term: CIF,FOB or CNF EX-Work are welcomed.
4. Payment term: T/T, 30% deposit, 70% before delivery; Or 100% Irrevocable non-transferred L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory, whichever comes first.
6. Validity: 20 days.
7. Payment currency: USD or EX-Work CNY.




Why choose US?

1. Safe and long life.
2. High efficiency.
3. Great wind capacity,low noise
4. Tuyere materials made of aluminum alloy and ABS plastic panel.




FAQ


Q: What information do you need to provide in order to get a quotation?
A: Generally, for AHU we need to know the Cooling Capacity, Air Flow, Power Supply and Order Quantity etc in order to suggest the suitable fan coil unit models and for providing the quotation.

Q: Can I have a samples for testing before ordering products?
A: Yes, you can.
We sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.


Q: What is the warranty of products?
A: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
