  • Product Name: Higolden Vertical Exposed Fan Coil Unit
  • Product Number: HLC~VE


Chilled Water Vertical Expose Floor standing Fan Coil Unit



Product Details

1)Low noise.
2)Easy installation.
3)Special design of air filter.
4)Air flows: 340 to 2380m3/h.
5)Cooling capacity range: 1.8 to 12.6kW.
6)Power supply: 220V, 50HZ, and 1pH depends on the different country.
7)Used for: Industry,hotel,commercial bulding,etc.
8)Function: cooling only,cooling and heating.
9)Test condition for rated refrigerating output of fan coil unit.




Product Series

1. Horizontal concealed FCU
2. Horizontal exposed FCU
3. Cassette FCU
4. Split FCU
5. Vertical exposed FCU
6. Vertical concealed FCU
7. Ceiling, floor FCU



Product Parameter



                                                                               Vertical Expose Fan Coil Unit
 Model  HLC~ 34VE 51VE 68VE 85VE 102VE 136VE 170VE 204VE 238VE

Air flow
 (m 3 /h)
 High speed 340 510 680 850 1020 1360 1700 2040 2380
 Medium speed 255 383 510 638 765 1020 1275 1530 1785
 Low speed 170 255 340 425 510 680 850 1020 1190
Cooling capacity  High W 1800 2700 3600 4500 5400 7200 9000 10800 12600
BTU 6143 9215 12287 15359 18430 24574 30717 36860 43004
Medium W 1620 2440 3290 4120 4850 6550 8190 9730 11580
BTU 5529 8328 11229 14062 16553 22355 27952 33208 39523
Low W 1310 2010 2650 3320 3900 5300 6610 7860 9350
BTU 4471 6860 9044 11331 13311 18089 22560 26826 31912
Heating capacity  High W 2700 4050 5400 6750 8100 10800 13500 16200 18900
BTU 9215 13823 18430 23038 27645 36860 46076 55291 64506
 Medium W 2350 3520 4530 6040 6850 9260 11740 14140 16360
BTU 8021 12014 15461 20615 23379 31604 40069 48260 55837
 Low W 1620 2470 3130 4170 4740 6500 8180 9710 11290
BTU 5529 8430 10683 14232 16178 22185 27918 33140 38533
 Cooling water temperature 7°C-12°C
Hot water temperature 40°C-60°C
 Power supply AC220V/50Hz
Heat Exchanger  Type copper pipes covered into aluminum fins, fin pitch 2.2mm
 Water supply kg/h 324 482 655 814 936 1278 1602 1915 2178
 Water resistance kPa 30 30 30 30 40 40 40 40 50
 Working pressure 1.6MPa
Low static pressure FCU Input power w 37 52 62 76 96 134 152 189 228
Motor power w 10 16 20 25 30 20×2 25×2 30×2 40×2
High static
pressure FCU
Static pressrue
30Pa
Input power w 44 59 72 87 108 156 174 212 253
Motor power w 12 20 25 30 40 25×2 30×2 40×2 50×2
Static pressure
50Pa
Input power w 49 66 84 100 118 174 210 250 300
Motor power w 16 25 30 40 50 30×2 40×2 50×2 60×2
Fan motor quantity 1 2 2 2 2 3 4 4 4
Noise
dB(A)
 Low static pressure ≤37 ≤39 ≤41 ≤43 ≤45 ≤46 ≤48 ≤50 ≤52
 High static pressure 30Pa ≤40 ≤42 ≤44 ≤46 ≤47 ≤48 ≤50 ≤52 ≤54
 High static pressure 50Pa ≤42 ≤44 ≤46 ≤47 ≤49 ≤50 ≤52 ≤54 ≤56
 Pipe   Inlet/outlet water pipe 3/4 "internal thread
 Condensation water pipe  external thread
Dimension L mm 1000 1000 1200 1300 1400 1600 1900 2100 2100
W mm 270 270 270 270 270 270 270 270 270
H mm 645 645 645 645 645 645 645 645 645
20GP container loading quantity 189 189 158 146 135 118 100 90 90
 40GP container loading quantity 373 373 311 287 267 233 196 178 178
 Main materials
 Aluminium thickness:0.014mm,  Copper tube thickless:0.35mm,   Galvanized sheet: 1mm,  Packing: Carton
Note:
1. Cooling: Indoors DB 27°C,WB 19.5°C;Chilled water inlet/outlet temp. 12°C/7°C.
2. Heating: Indoors DB WB 21°C, heating water inlet&outlet temperature  60°C/50°C;
3.The noise level based on: background noise 11.5Db(A) semi-anechoic room.
4. Water resitance refers to that of rated water flow volume;
5. Input power refers to that of High speed air flow;
6. Above parameters are for your reference to model choice of FCU with cooling and heating; Heating energy of one row is 40% of three rows';   Low
    static pressure air flow volume loss: 10%, high static pressure air flow volume loss: 20%.

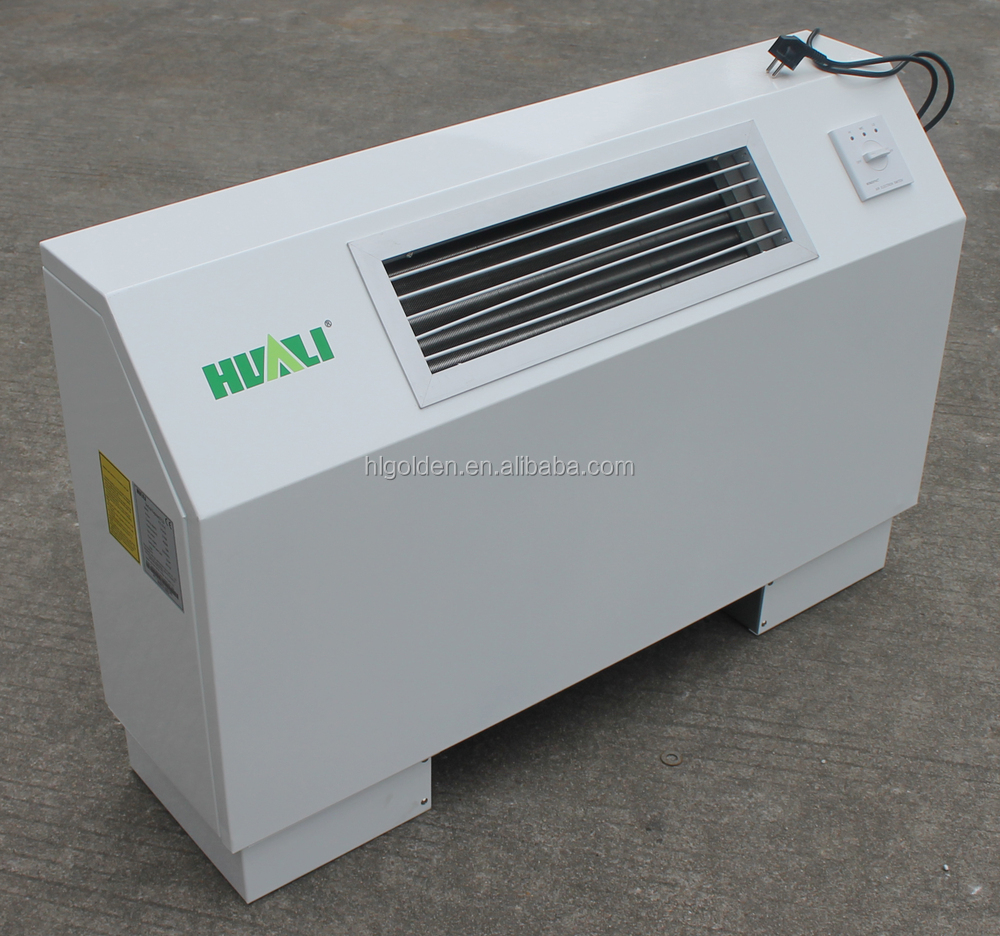

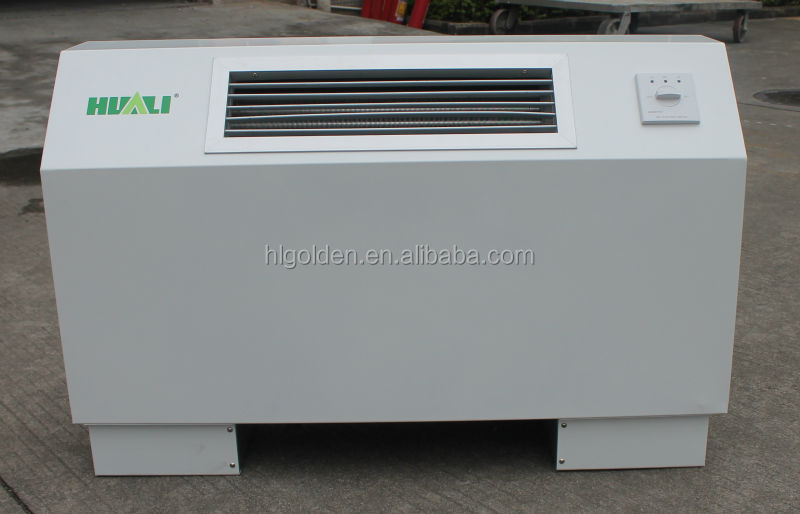

Product Show
