  • Product Name: Screw type water cooled condensing unit (Bitzer Compressor)
  • Product Number: HLWB-50J



Screw Type Water cooled Condensing Unit (Bitzer Compressor)





Product Description



1. Screw type condensing unit (with Bitzer compressors)

This series products are applicable to the large size -25℃~-40℃ low temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc., with the features of.
1) German Bitzer semi-hermetic, low temperature screw compressor, with the features of high efficiency, long service life, tiny vibration and low noise.
2) All this series products have a complete set of world famous components, protection devices for compressor wrong direction, overheat, overload, over discharging temp, low oil level, over high/low pressure of oil flow etc.
3) The product is matched with economizer, which can effectively increase the capacity for low temp operation.



2. Main components
Low temp. screw machine     Sight glasses      Pressure protector
Economizer assembly       Receiver        Pressure gauge
Oil circuit assembly      Oil cooler       Suction Filter
Unit control box(PLC+touch panel)

Oil separator    Liquid pipe Filter
Condenser(only for water-cooling unit)





Product Parameter



Model      HLWB~ 50J 60J 70J 75J 125J 160J 100J
Temperature() -25℃ ~ -40
Power 380V/ 3Ph/ 50HZ
Comp. Type Semi-Hermetic Screw
Comp. Model HSN6461-50 HSN7451-60 HSN7461-70 HSN7471-75 HSN8571-125 HSN8591-160 HSN6461-50
Qty. 1 1 1 1 1 1 2
Condenser Type Shell & Tube
Cooling Waterm3/h 18 23 26 28 45 55 36
Water Pipe Size (inch) 2 2-1/2 2-1/2 2-1/2 3 3 2-1/2
Cap. &
Input
 Te Cap (KW) 42.3 50.7 58.1 63.1 106.6 134.8 84.6
-35 Input (KW) 32.8 40.3 44.7 47.6 74.6 101.5 65.6
 Te Cap (KW) 33.3 39.5 45.8 50 84.7 106.9 66.6
-40 Input (KW) 31.5 39 43.1 45.9 70.9 97.3 63
Te Cap (KW) 25.5 29.5 35.1 38.3 65.7 82.7 51
-45 Input (KW) 30.2 37.8 41.5 44.1 66.9 92.7 60.4
Connect Gas In (mm) φ54 φ76 φ76 φ76 φ108 φ108 φ108
Liquid dia. (mm) φ28 φ28 φ28 φ28 φ35 φ35 φ35
Overall sizes L (mm) 1800 1800 1800 2000 2250 2250 2400
W (mm) 1050 1050 1050 1050 1100 1100 1880
H(mm) 1300 1300 1300 1300 1730 1730 2100






Product Show

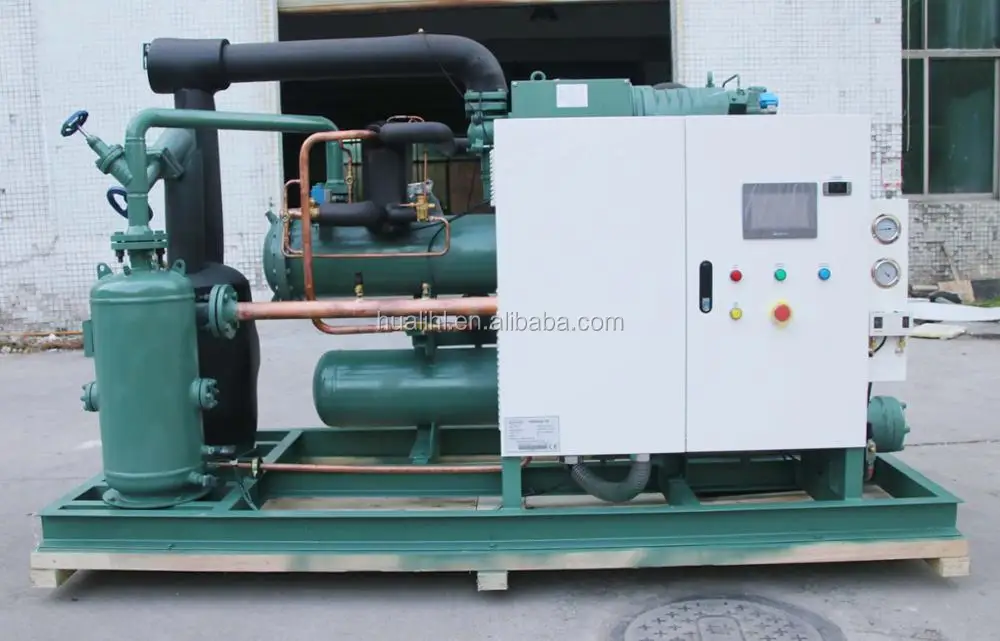

Low temperature water cooled condensing unit for cold storage
